Vue - Progress Bar : Axios Interceptors

Progress Bar: Axios Interceptors

it’s important to design user-friendly applications that give feedback when parts of your webpage are still loading.

웹페이지의 일부가 여전히 로드 중일 때 피드백을 제공하는 사용자 친화적인 애플리케이션을 디자인하는 것이 중요합니다.

• Installing NProgress
• Using Axios Interceptors

Problem: Our API calls might not always be super fast

let our users know the data is on the way, and have something happen when they click a link that requires an API call.

사용자에게 데이터가 전송 중임을 알리고 API 호출이 필요한 링크를 클릭하면 어떤 일이 발생하도록 합니다.





Solution #1: Progress Bar using API Interceptors

$ npm install nprogress

/src/main.js

include the CSS for it inside our main.js

    ...
    import store from './store/store'
    import BaseIcon from '@/components/BaseIcon'
    import 'nprogress/nprogress.css' // <-----

Using Axios Interceptors

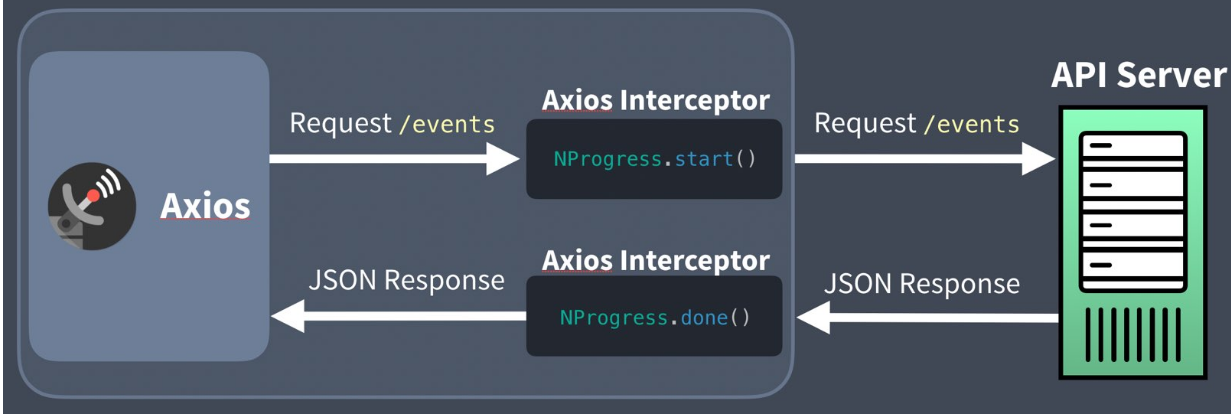

Axios Interceptors allow us to intercept our requests and responses adding additional functionality, like starting and stopping a progress bar.

Axios 인터셉터를 사용하면 progress bar  시작 및 중지와 같은 추가 기능을 추가하여 요청 및 응답을 가로챌 수 있습니다.

 Axios Interceptors can be useful for many things including:

Axios Interceptors는 다음을 포함한 다양한 용도에 유용할 수 있습니다.

• On request to set proper authorization tokens.
• 적절한 인증 토큰을 설정하라는 요청 시.
• On response to format or filter data before it reaches into your app.
• 데이터가 앱에 도달하기 전에 데이터 형식을 지정하거나 필터링하는 것에 대한 응답입니다.
• On response to catch 401 not authorized responses.
• 응답 시 승인되지 않은  401을 잡기 위한  응답입니다.

/src/services/EventService.vue

import axios from 'axios'

const apiClient = axios.create({
  baseURL: `http://localhost:3000`,
  withCredentials: false, // This is the default
  headers: {
    Accept: 'application/json',
    'Content-Type': 'application/json'
  }
})

export default {
  getEvents(perPage, page) {
    return apiClient.get('/events?_limit=' + perPage + '&_page=' + page)
  },
  getEvent(id) {
    return apiClient.get('/events/' + id)
  },
  postEvent(event) {
    return apiClient.post('/events', event)
  }
}



current codes changes  by adding Axios Interceptors to our code.



/src/services/EventService.vue

    import axios from 'axios'
    import NProgress from 'nprogress' // <--- Import the library

    const apiClient = axios.create({ ... })

    apiClient.interceptors.request.use(config => { // Called on request
      NProgress.start()
      return config
    })
    apiClient.interceptors.response.use(response => { // Called on response
      NProgress.done()
      return response
    })

    ...





With the -d 1500, the API server will add a 1.5 second (1,500 millisecond) delay before returning our data.

-d 1500을 사용하면 API 서버가 데이터를 반환하기 전에 1.5초(1,500밀리초)의 지연을 추가합니다.

 $ json-server -d 1500 db.json



Caveat #1 - Not optimal for multiple API calls at the same time

This works great until we are using two or more API calls to load a page.

이는 페이지를 로드하기 위해 두 개 이상의 API 호출을 사용할 때까지 훌륭하게 작동합니다.

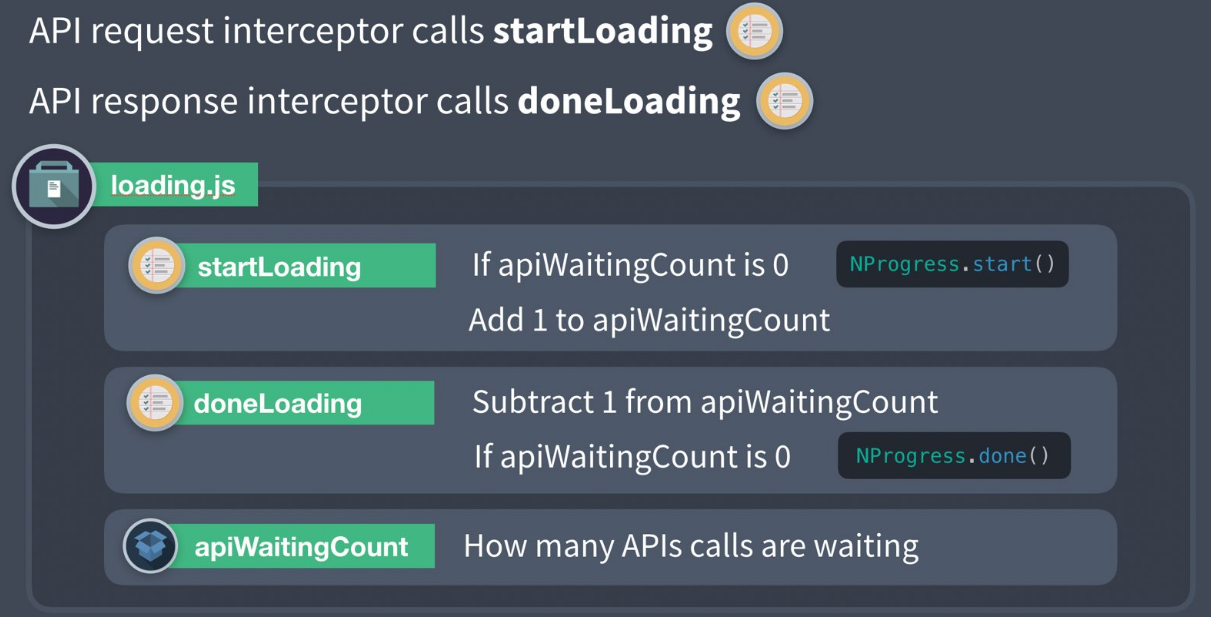

A common solution to this problem is to create a loading Vuex module that holds the loading State.

이 문제에 대한 일반적인 해결책은 로딩 상태를 보유하는 로딩 Vuex 모듈을 만드는 것입니다.





Caveat #2 - Templates get rendered before the API call is returned

In-Component Route Guards and then using Global with Per-Route Guards can address this issue.

In-Component Route Guards를 사용하고 Per-Route Guards와 함께 Global을 사용하면 이 문제를 해결할 수 있습니다.



Resources

Create a global loading progress indicator using Vuex, Axios, and NProgress

addressing Caveat #1 - Not optimal for multiple API calls at the same time

https://medium.com/@LoCascioNick/create-a-global-loading-progress-indicator-using-vuex-axios-and-nprogress-20451b33145a

Create a global loading progress indicator using Vuex, Axios, and NProgress



Sample codes

https://github.com/Code-Pop/real-world-vue/releases/tag/progress-bar-axios-interceptors-finish

Release progress-bar-axios-interceptors-finish · Code-Pop/real-world-vue



https://ricostacruz.com/nprogress/

NProgress: slim progress bars in JavaScript

https://github.com/axios/axios

GitHub - axios/axios: Promise based HTTP client for the browser and node.js
